C1

Description

The Micromake C1 is a simple and robust 3D printer that allows you to make very good quality parts with our recommendations or if you have some experience!

It is equipped with an all-metal extrusion (no Teflon inside) allowing you to print at high temperatures (over 250°C). It is also equipped with a glass printing plate without a heat mat (click on it for more info) with the possibility to adapt one if needed. This configuration will allow you to print any type of filament that does not require a heating mat. With the EZ-Stick Cold (for tray without heating mat) you can print most of the filaments.

Bowden version (external motor) for a lighter print head, easy to convert to direct extrusion if required. Displacements in X, Y and Z on wheels (X and Z linked). Max print volume : 24.5 x 24.5 x 26cm. (X,Y,Z).

This printer is delivered as a kit, however it can also be delivered assembled, adjusted and tested if you wish!

Contact us (click on this link) if you want more information!

Remark:
Flexible filaments can have problems with bowden type, our TPU98A (click on it for more info) is a flexible filament designed for bowden type.

Abrasive filaments such as Carbon-P, Metal etc., can wear out the nozzle very quickly, preferably change to a hardened steel nozzle (click on it for more info).

For a better adhesion to the print bed, we offer the EZ-Stick from Gecko Tek (click on it for + info). A tailor-made choice, easy to apply and for easy removal of parts! With the EZ-Stick Cold (for tray without heating mat) you can print most of the filaments.

Extruder:
Bowden type (motor remote to the outside) for a lighter print head
All-metal extrusion (without Teflon inside) to print at high temperatures
With mechanical endstop (possibility to adapt a proximity detector)
For any type of filament that does not require a heating mat, 1.75mm.
Supplied with a 0.4mm nozzle.

Print tray:

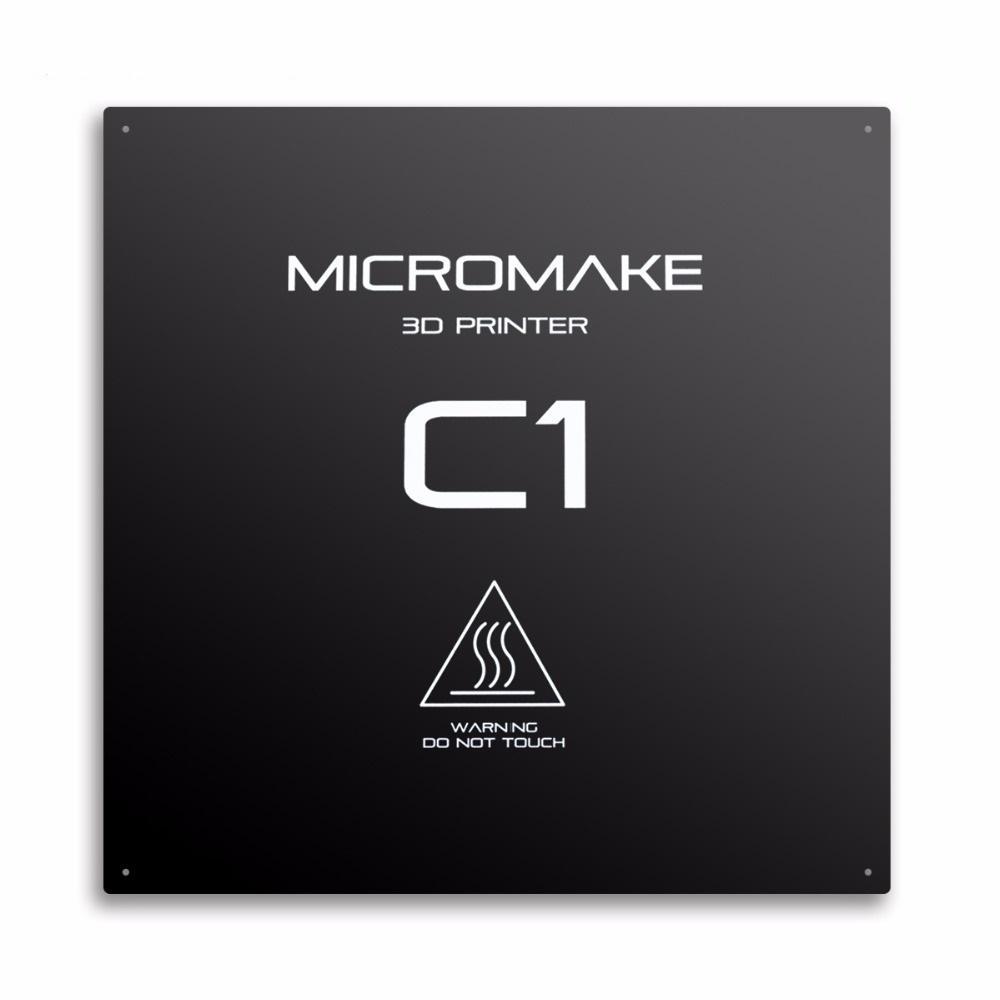

Printing area of 245x 245 x 260mm. glass
Without heating mat (possibility to adapt one, click on this link for + info)

Printer feature:
Moving the X, Y, and Z axis on wheels
Recommended print speed – (no info)
Recommended layer resolution from 0.05 to 0.4mm.
Motor movement of X and Y – (no info) and Z – (no info)
All-metal structure (aluminum profile 2020 and 2040)
Printer size of 550 x 500 x 480mm.
Printer weight of 8kg.

Electric:
LCD Controller Makeboard Mini
Motherboard Makeboard rev. 2.1.2
Connection by SD or USB card
Transformer (power / power) of 110 – 240V / 12V – 6A

Computer science:
Print File Format: STL, G-Code, OBJ
Control software: Repetier-host, Cura, Slic3r, etc…
Operating system: Windows, MAC, LINUX

Supplied with a coil holder, a small spatula and some tools for assembly.

Download Cura on this link:
https://ultimaker.com/en/products/ultimaker-cura-software
